Section 5. 실무에서 느껴 본 쿠버네티스가 정말 편한 이유 [복습] 본문
실제 프로젝트를 할때 구조적인 문제 -> 쿠버네티스 생태계를 사용하면
1. 개발과 모니터링 시스템이 서로 엮일 수 밖에 없는 구조 -> 엮이지 않는
2. 개발에서는 한 번도 써보지 않은 (개발 시스템을 위한)모니터링 시스템을 만드는 구조 -> 초기부터 바로 쓸 수 있는
3. 오픈 시 개발 프로젝트와 서로 다른 범위의 App들을 모니터링 하게 되는 구조 -> 자동으로 같아지는 범위
모니터링 설치
# 강사님 git에서 prometheus(with grafana), loki-stack 다운로드
[root@k8s-master ~]# yum -y install git
# 로컬 저장소 생성
[root@k8s-master ~]# git init monitoring
Initialized empty Git repository in /root/monitoring/.git/
[root@k8s-master ~]# git config --global init.defaultBranch main
[root@k8s-master ~]# cd monitoring
# remote 추가
[root@k8s-master monitoring]# git remote add -f origin https://github.com/k8s-1pro/install.git
Updating origin
remote: Enumerating objects: 3523, done.
remote: Counting objects: 100% (347/347), done.
remote: Compressing objects: 100% (203/203), done.
remote: Total 3523 (delta 154), reused 301 (delta 123), pack-reused 3176 (from 1)
Receiving objects: 100% (3523/3523), 2.61 MiB | 20.38 MiB/s, done.
Resolving deltas: 100% (1524/1524), done.
From https://github.com/k8s-1pro/install
* [new branch] main -> origin/main
# sparse checkout 설정
[root@k8s-master monitoring]# git config core.sparseCheckout true
[root@k8s-master monitoring]# echo "ground/k8s-1.27/prometheus-2.44.0" >> .git/info/sparse-checkout
[root@k8s-master monitoring]# echo "ground/k8s-1.27/loki-stack-2.6.1" >> .git/info/sparse-checkout
# 다운로드
[root@k8s-master monitoring]# git pull origin main
From https://github.com/k8s-1pro/install
* branch main -> FETCH_HEAD
# Prometheus 설치
[root@k8s-master monitoring]# kubectl apply --server-side -f ground/k8s-1.27/prometheus-2.44.0/manifests/setup
[root@k8s-master monitoring]# kubectl wait --for condition=Established --all CustomResourceDefinition --namespace=monitoring
[root@k8s-master monitoring]# kubectl apply -f ground/k8s-1.27/prometheus-2.44.0/manifests
[root@k8s-master monitoring]# kubectl get pods -n monitoring
NAME READY STATUS RESTARTS AGE
grafana-646b5d5dd8-hszjw 0/1 ContainerCreating 0 9s
kube-state-metrics-86c66b4fcd-zcdgw 0/3 ContainerCreating 0 9s
node-exporter-4hx5n 0/2 ContainerCreating 0 9s
prometheus-adapter-648959cd84-zmkrq 0/1 ContainerCreating 0 9s
prometheus-operator-7ff88bdb95-qlkwz 0/2 ContainerCreating 0 9s
[root@k8s-master monitoring]# kubectl get pods -n monitoring
NAME READY STATUS RESTARTS AGE
grafana-646b5d5dd8-hszjw 1/1 Running 0 4m44s
kube-state-metrics-86c66b4fcd-zcdgw 3/3 Running 0 4m44s
node-exporter-4hx5n 2/2 Running 0 4m44s
prometheus-adapter-648959cd84-zmkrq 1/1 Running 0 4m44s
prometheus-k8s-0 2/2 Running 0 4m7s
prometheus-operator-7ff88bdb95-qlkwz 2/2 Running 0 4m44s
# Loki-Stack 설치
# 설치
[root@k8s-master monitoring]# kubectl apply -f ground/k8s-1.27/loki-stack-2.6.1
[root@k8s-master monitoring]# kubectl get pods -n loki-stack
NAME READY STATUS RESTARTS AGE
loki-stack-0 0/1 ContainerCreating 0 6s
loki-stack-promtail-7hzmt 0/1 ContainerCreating 0 6s
[root@k8s-master monitoring]# kubectl get pods -n loki-stack
NAME READY STATUS RESTARTS AGE
loki-stack-0 0/1 Running 0 27s
loki-stack-promtail-7hzmt 1/1 Running 0 27s
[root@k8s-master monitoring]# kubectl get pods -n loki-stack
NAME READY STATUS RESTARTS AGE
loki-stack-0 0/1 Running 0 70s
loki-stack-promtail-7hzmt 1/1 Running 0 70s
[root@k8s-master monitoring]# kubectl get pods -n loki-stack
NAME READY STATUS RESTARTS AGE
loki-stack-0 1/1 Running 0 2m4s
loki-stack-promtail-7hzmt 1/1 Running 0 2m4s설치 확인

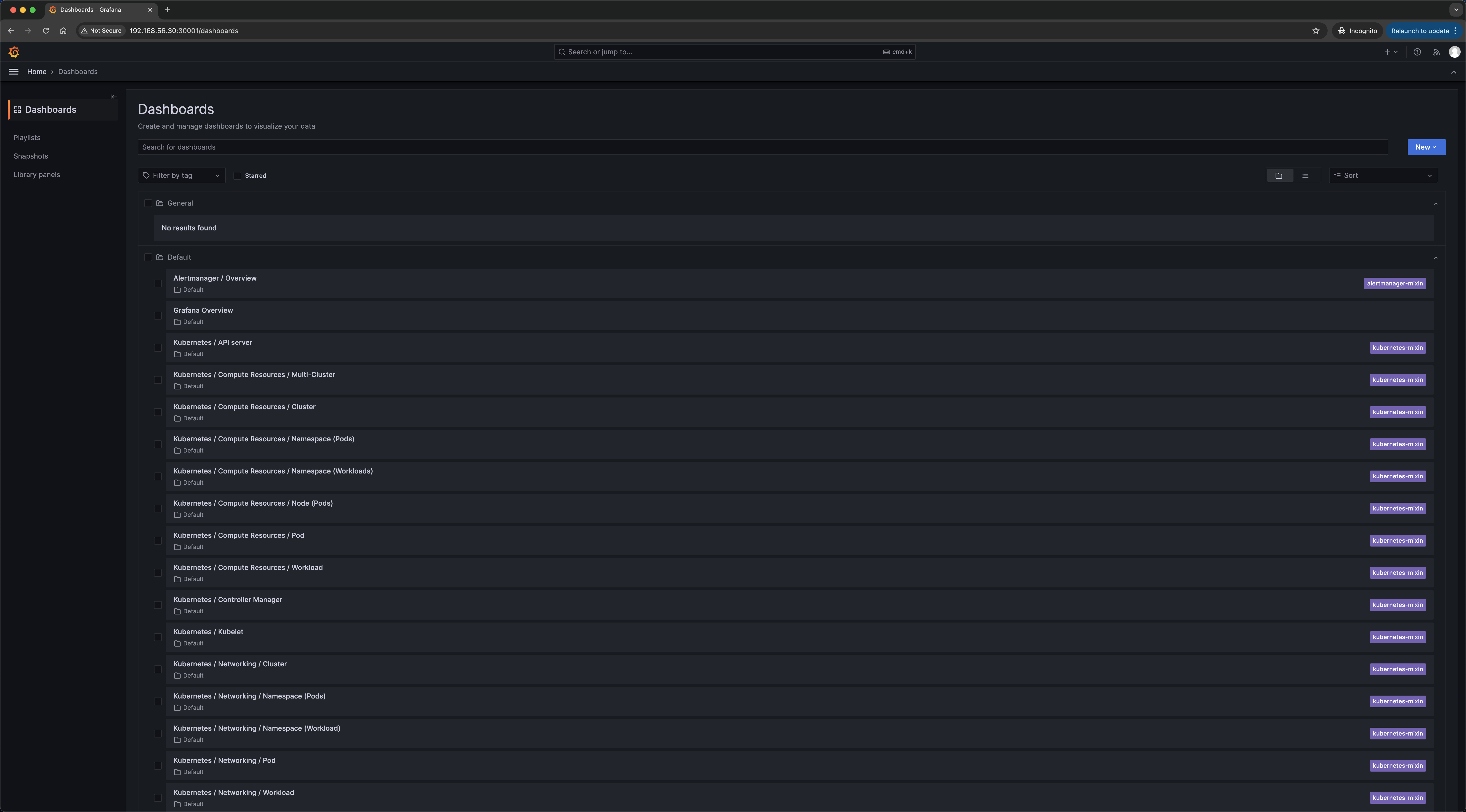

Prometheus 접속
http://192.168.56.30:30001/
Loki-Stack 연결

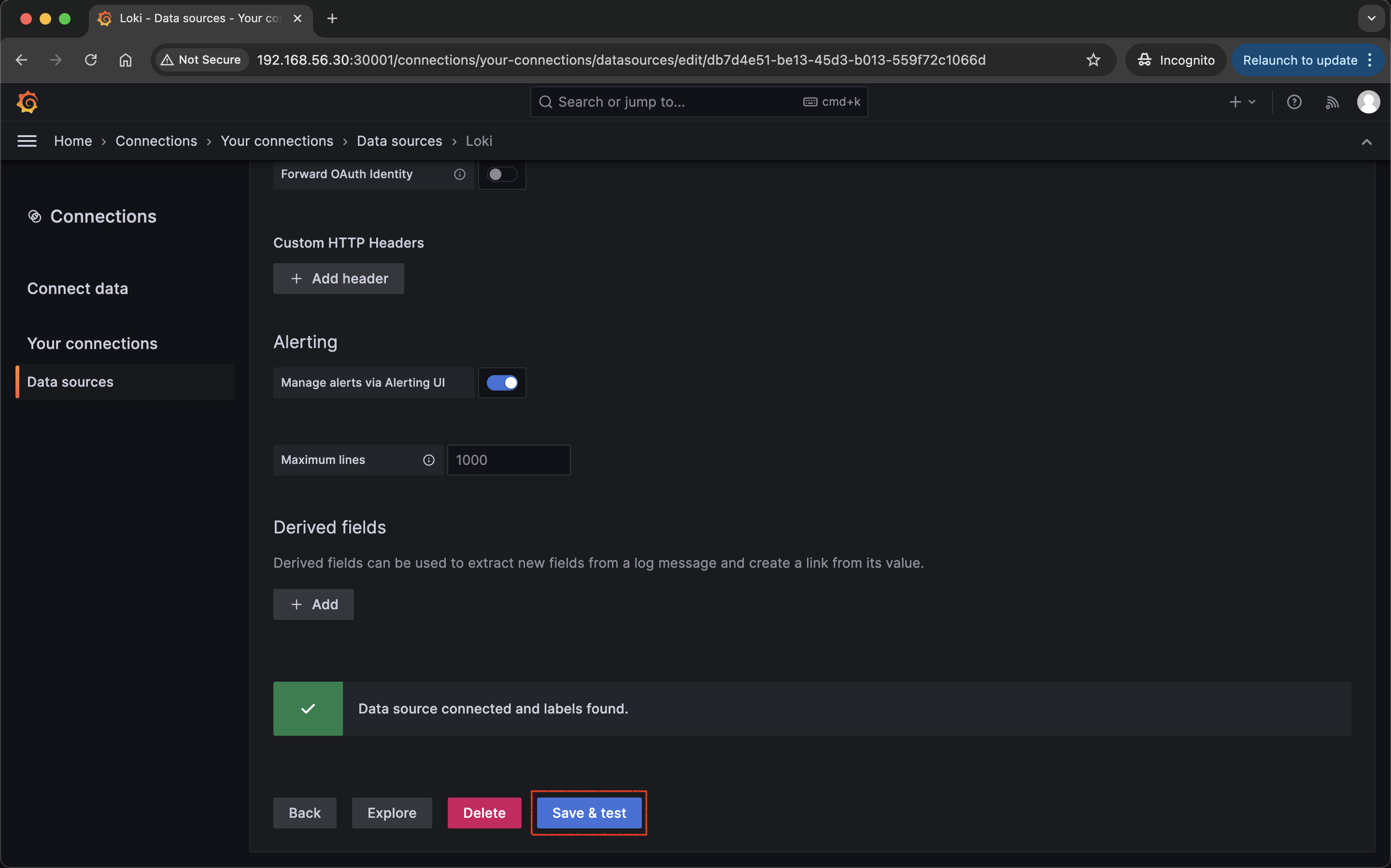

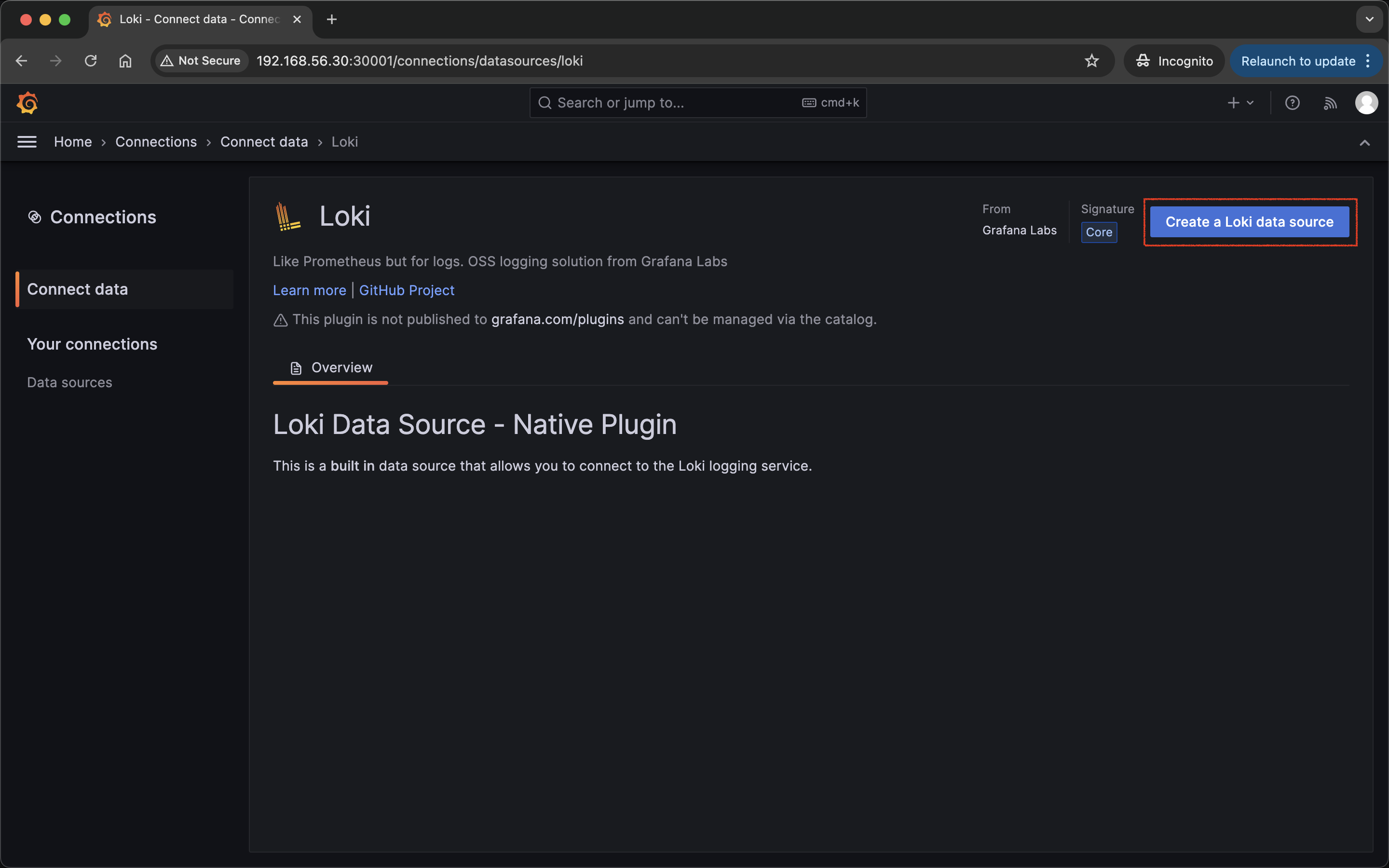

Data spirces 만들기

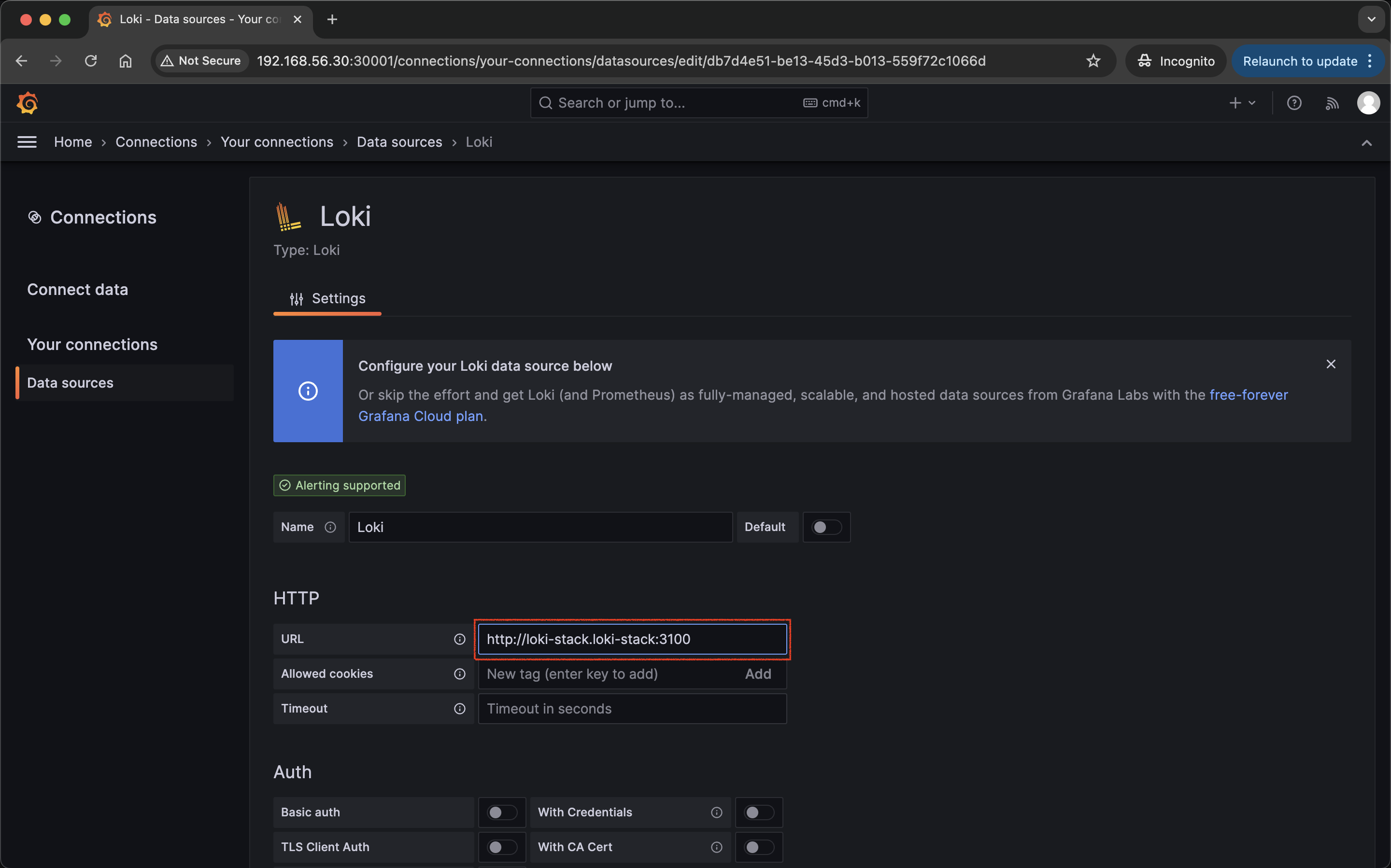

URL : http://loki-stack.loki-stack:3100

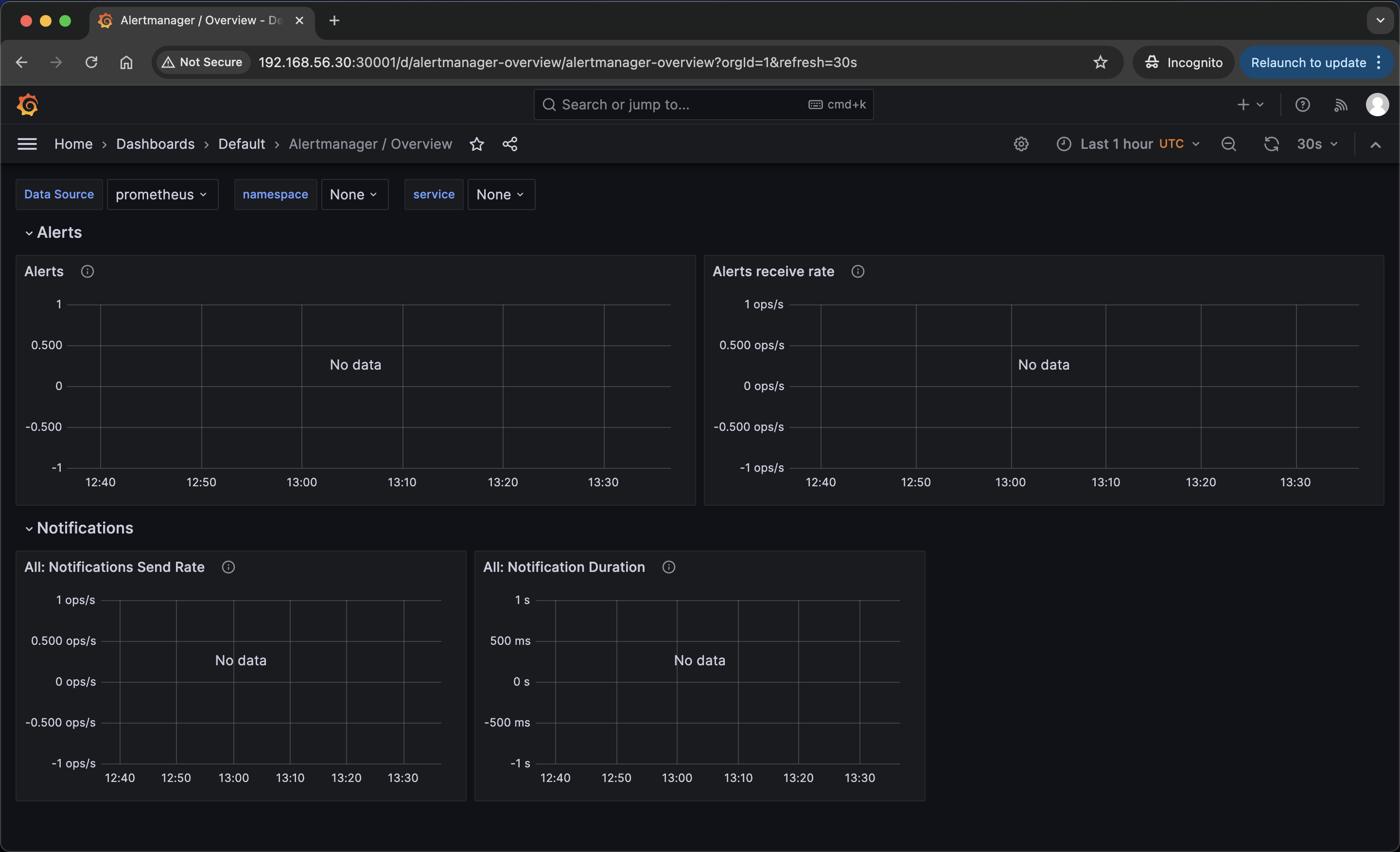

Dashboard에 데이터가 보여야 하는데 안보인다..?
동일 현상을 겪은 카페 댓글에서 해결 방법을 찾았다
#
[root@k8s-master monitoring]# timedatectl
Local time: Sun 2025-06-08 22:40:34 KST
Universal time: Sun 2025-06-08 13:40:34 UTC
RTC time: Sun 2025-06-08 13:40:35
Time zone: Asia/Seoul (KST, +0900)
System clock synchronized: no
NTP service: active
RTC in local TZ: no
[root@k8s-master monitoring]# yum install -y chrony
[root@k8s-master monitoring]# timedatectl set-ntp true
[root@k8s-master monitoring]# timedatectl
Local time: Sun 2025-06-08 22:38:59 KST
Universal time: Sun 2025-06-08 13:38:59 UTC
RTC time: Sun 2025-06-08 13:39:00
Time zone: Asia/Seoul (KST, +0900)
System clock synchronized: yes
NTP service: active
RTC in local TZ: no
[root@k8s-master monitoring]# systemctl restart chronyd.service
# 서비스 재시작을 하니까 원복..?
[root@k8s-master monitoring]# timedatectl
Local time: Sun 2025-06-08 22:40:34 KST
Universal time: Sun 2025-06-08 13:40:34 UTC
RTC time: Sun 2025-06-08 13:40:35
Time zone: Asia/Seoul (KST, +0900)
System clock synchronized: no
NTP service: active
RTC in local TZ: no
# 재부팅
[root@k8s-master monitoring]# shutdown -r now
[root@k8s-master ~]# timedatectl
Local time: Sun 2025-06-08 22:42:43 KST
Universal time: Sun 2025-06-08 13:42:43 UTC
RTC time: Sun 2025-06-08 13:42:44
Time zone: Asia/Seoul (KST, +0900)
System clock synchronized: yes
NTP service: active
RTC in local TZ: no
[root@k8s-master ~]# k get deployments.apps -A
NAMESPACE NAME READY UP-TO-DATE AVAILABLE AGE
anotherclass-123 api-tester-1231 0/2 2 0 2d2h
calico-apiserver calico-apiserver 2/2 2 2 10d
calico-system calico-kube-controllers 1/1 1 1 10d
calico-system calico-typha 1/1 1 1 10d
kube-system coredns 2/2 2 2 10d
kube-system metrics-server 1/1 1 1 10d
kubernetes-dashboard dashboard-metrics-scraper 1/1 1 1 10d
kubernetes-dashboard kubernetes-dashboard 1/1 1 1 10d
monitoring grafana 1/1 1 1 39h
monitoring kube-state-metrics 1/1 1 1 39h
monitoring prometheus-adapter 1/1 1 1 39h
monitoring prometheus-operator 1/1 1 1 39h
tigera-operator tigera-operator 1/1 1 1 10d
[root@k8s-master ~]# k rollout restart deployment -n monitoring
deployment.apps/grafana restarted
deployment.apps/kube-state-metrics restarted
deployment.apps/prometheus-adapter restarted
deployment.apps/prometheus-operator restarted화면이 나온다..!!

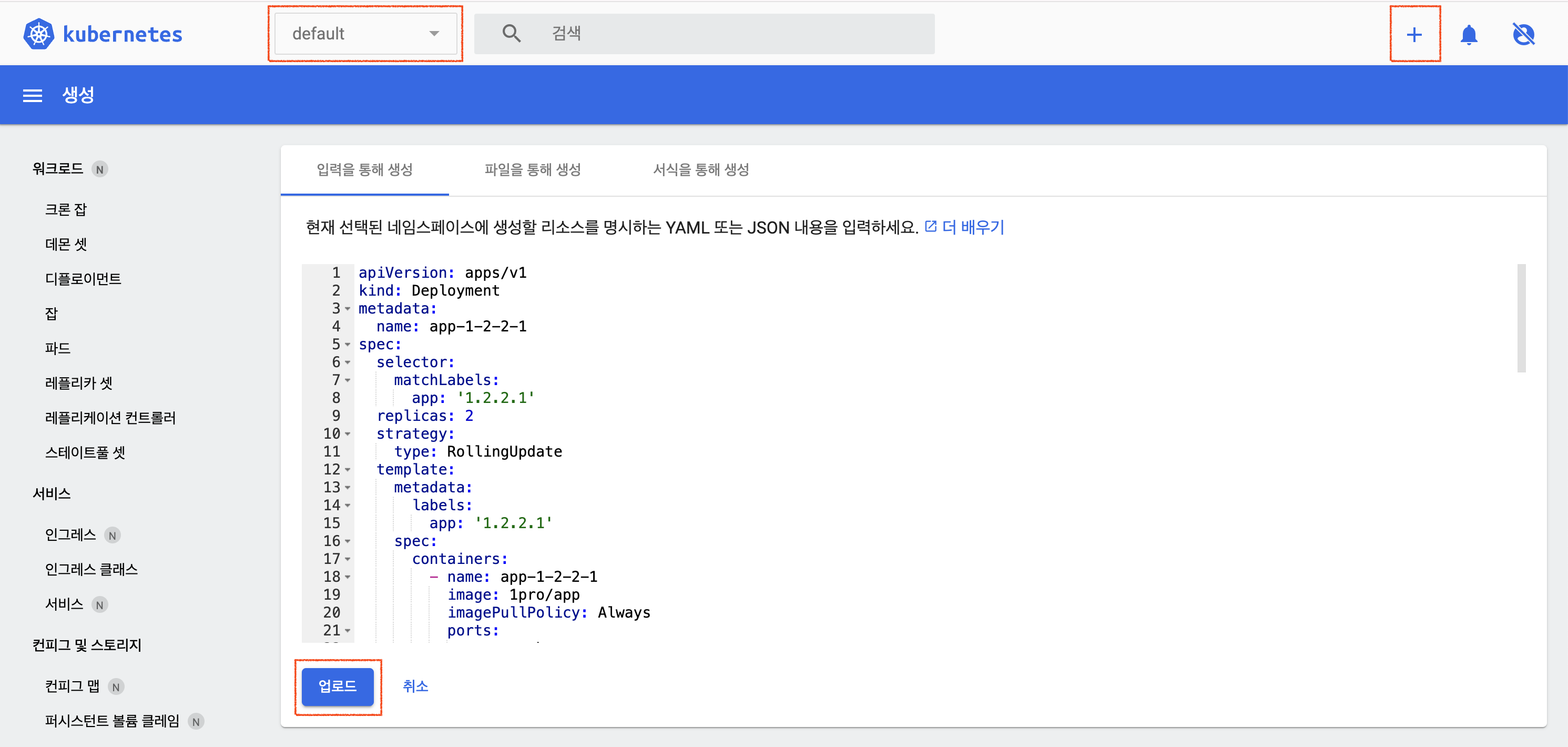

내 쿠버네티스 대시보드에 App 배포
apiVersion: apps/v1
kind: Deployment
metadata:
name: app-1-2-2-1
spec:
selector:
matchLabels:
app: '1.2.2.1'
replicas: 2
strategy:
type: RollingUpdate
template:
metadata:
labels:
app: '1.2.2.1'
spec:
containers:
- name: app-1-2-2-1
image: 1pro/app
imagePullPolicy: Always
ports:
- name: http
containerPort: 8080
startupProbe:
httpGet:
path: "/ready"
port: http
failureThreshold: 20
livenessProbe:
httpGet:
path: "/ready"
port: http
readinessProbe:
httpGet:
path: "/ready"
port: http
resources:
requests:
memory: "100Mi"
cpu: "100m"
limits:
memory: "200Mi"
cpu: "200m"
---
apiVersion: v1
kind: Service
metadata:
name: app-1-2-2-1
spec:
selector:
app: '1.2.2.1'
ports:
- port: 8080
targetPort: 8080
nodePort: 31221
type: NodePort
---
apiVersion: autoscaling/v2
kind: HorizontalPodAutoscaler
metadata:
name: app-1-2-2-1
spec:
scaleTargetRef:
apiVersion: apps/v1
kind: Deployment
name: app-1-2-2-1
minReplicas: 2
maxReplicas: 4
metrics:
- type: Resource
resource:
name: cpu
target:
type: Utilization

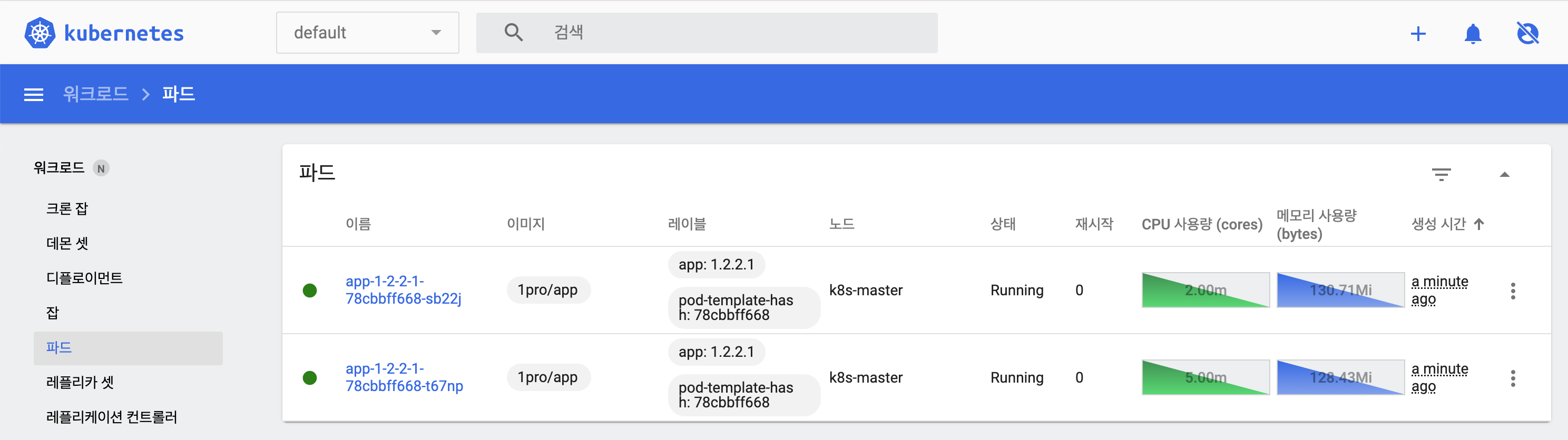

averageUtilization: 40배포확인
쿠버네티스 기능 테스트
# App에 지속적으로 트래픽 보내기 (Traffic Routing 테스트)
while true; do curl http://192.168.56.30:31221/hostname; sleep 2; echo ''; done;
# App에 Memory Leak 나게 하기 (Self-Healing 테스트)
curl 192.168.56.30:31221/memory-leak
# App에 부하주기 (AutoScaling 테스트)
curl 192.168.56.30:31221/cpu-load
# App 이미지 업데이트 (RollingUpdate 테스트)
kubectl set image -n default deployment/app-1-2-2-1 app-1-2-2-1=1pro/app-update
# 기동되지 않는 App 업데이트 (RollingUpdate 테스트)
kubectl set image -n default deployment/app-1-2-2-1 app-1-2-2-1=1pro/app-error
# 업데이트 중지하고 롤백 할 경우
kubectl rollout undo -n default deployment/app-1-2-2-1
# 강의에서 배포한 Object 삭제
kubectl delete -n default deploy app-1-2-2-1
kubectl delete -n default svc app-1-2-2-1
kubectl delete -n default hpa app-1-2-2-1'DevOps > 인프런 워밍업스터디 4기' 카테고리의 다른 글
